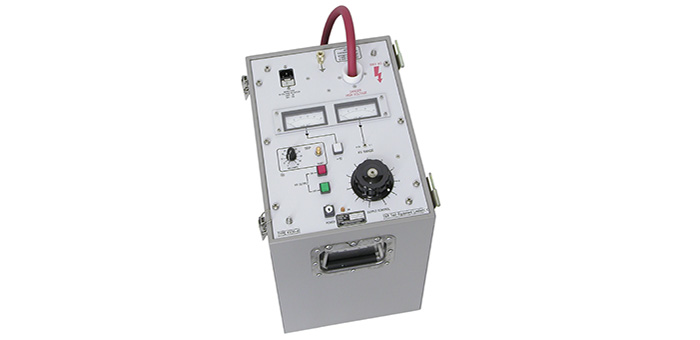

KV10-120 KV15-80 KV30-40 - High Voltage AC Test Systems

The KV10-120, KV15-80 and KV30-40 high voltage test sets are general purpose test instruments designed for testing insulation systems and the measurement of breakdown voltage on electrical plant and components.

The units have an output voltage variable from zero to 10kV (KV10-120), 15kV (KV15-80) or 30kV (KV30-40) with accurate metering on both the output voltage and current. A zero-voltage interlock is provided, ensuring that the output may only be energised with the voltage control at zero.

Features:

0-10kV (KV10-120), 0-15kV (KV15-80), 0-30kV (KV30-40) output voltage

1.2kVA output capability

Key operated supply switch to prevent unauthorised operation

Dual overload protection

Variable electronic trip - 10-110% of rated output

Voltage and current metering

Zero-volt interlock

Visual indication of test piece failure
